TYPE A- ADJUSTABLE STEEL PROP (STANDARD SIZE)
Steel Props are made from continuous welded steel welded steel tubes & confirms to IS 1239 grade YST 210. S.E. Prop and stauds are manufactured from high quality material for long life and are highly resistant to site wear and tear.
| Outer Tube : 60.3 mm OD Inner Tube : 48.3 mm OD | ||||
|---|---|---|---|---|
| Size Prop | Height (m) Closed Extended |
Safe Axial Lord (Kg) Closed Extended |
||
| ON | 1.10 - | 1.75 | 3500 | 3000 |
| 01 | 1.50 - | 2.75 | 3200 | 2300 |
| 02 | 2.00 - | 3.25 | 3000 | 2200 |
| 03 | 2.00 - | 3.75 | 2900 | 2000 |
| 04 | 3.00 - | 4.65 | 2300 | 1150 |
TYPE B - HEAVY DUTY PROP (INTERNATIONAL SIZE)
| Outer Tube : 60.3 mm OD Inner Tube : 48.3 mm OD | |||||
|---|---|---|---|---|---|
| Size Prop | Height (m) Closed Ht. Open Ht. |
Safe Axial Lord (Kg) Closed Extended |
Wt. (Kg.) | ||
| ON | 1.07 - | 1.80 | 5080 | 5080 | 11.50 |
| 01 | 1.75 - | 3.12 | 5080 | 2550 | 16.70 |
| 02 | 1.98 - | 3.35 | 5080 | 2380 | 17.80 |
| 03 | 2.59 - | 3.95 | 3630 | 1670 | 20.20 |
| 04 | 3.20 - | 4.87 | 3770 | 1300 | 23.90 |
Note : Prop inner is required to be braced in both directions just above the prop nut when extended beyond 3.6 m

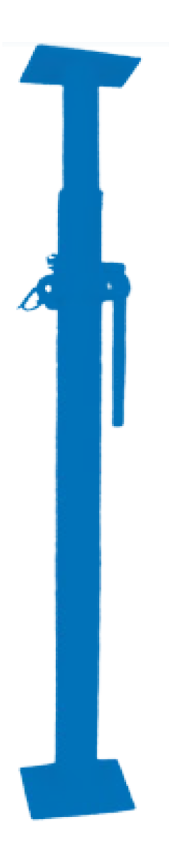

TYPE A- ADJUSTABLE STEEL PROP

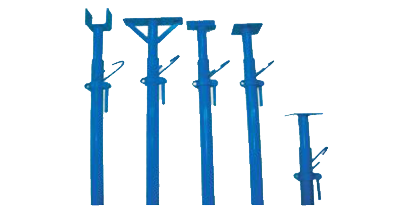

TYPE B - HEAVY DUTY PROP
